MSE PRO 10mL Stainless Steel Intelligent Quick-Opening Magnetic Stirring Reactor
SKU: LS2714
MSE PRO™ 10mL Stainless Steel Intelligent Quick-Opening Magnetic Stirring Reactor

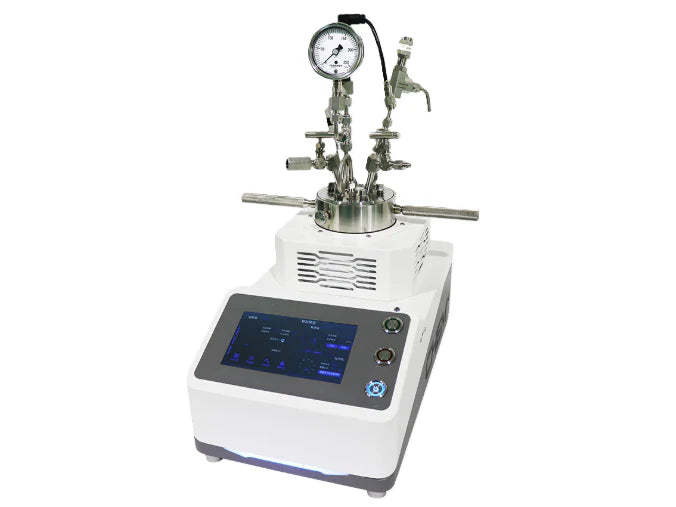

MSE PRO™ Intelligent Quick-Opening Magnetic Stirring Reactor integrates magnetic stirring, high-temperature heating, and smart control into a single system, with a design temperature of 300°C and pressure of 20.7 MPa.

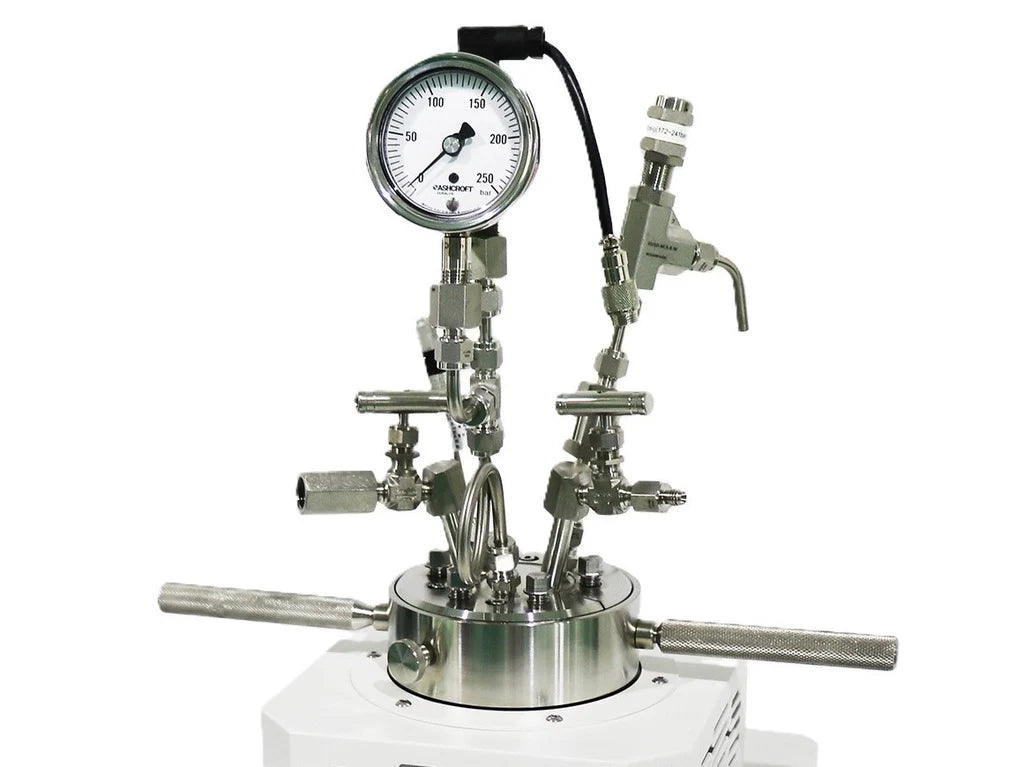

The reactor features a one-piece machined structure and a comprehensive safety system, including an MEAS pressure sensor, ASHCROFT pressure gauge, Swagelok safety valve, and a custom rupture valve. Additional safety mechanisms, such as over-temperature power cutoff and over-pressure buzzer alarms, ensure safe operation in high-temperature and high-pressure environments.
Its innovative quick-opening modular design, combined with assistive disassembly tools, significantly enhances operational efficiency.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of reactors. Please contact us for more information.
Product Features
- Integrated Machined Structure with Quick-Opening Mechanism
- Mortise-and-Tenon Sealing Design with Assistive Disassembly Tools
- Over-Temperature Auto Power Cutoff & Over-Pressure Buzzer Alarm
- 7-Inch High-Sensitivity Touchscreen with Intuitive UI Interface
- Swagelok Gas Inlet/Outlet Needle Valves & USB Data Export
- Dual Safety Protection: Fitok Safety Valve + Custom Rupture Valve
- User-Friendly Design for Quick and Easy Operation
- Precision Control: Intelligent PID Temperature Regulation
- Integrated System: Digital Stepless Stirring Speed Adjustment
- Enhanced Heat Transfer: Embedded Heating Module for Faster Response
- Lightweight Construction for Maximum Safety Without Compromising Durability
Specification
| SKU# | LS2714 |
|
Power Supply
|
220V/60HZ |
|
Design volume
|
10mL |
| Design temperature | 300℃ (Maximum 500 ℃ upon request) |
| Heating method | Embedded stainless steel heating module |
| Heating power | 1KW |
| Stirring speed | 100 - 1200rpm |
| Stirring method | Built-in magnetic stirring |
| Work Pressure | 20.7 Mpa (Maximum pressure 35MPa upon request) |
| Kettle body material | Stainless Steel 316L |
| Intelligent Micro Reactor Controller |
Over-temperature automatic power cutoff, over-pressure buzzer alarm 7-inch touchscreen display: Monitors temperature, speed, pressure, and working time USB communication interface with data export support Dimensions: Approximately 250 × 300 × 410 mm |
| Pressure sensor | MEAS |
| Pressure gauge | ASHCROFT |
| Inlet & outlet valves | Swagelok |
| Rupture valve | Included |
| Safety valve | Fitok |
|
Matching magnet (optional)
|
PTFE magnetron: recommended operating temperature is not higher than 260℃
|
|
Glass magnets: recommended operating temperature is no higher than 400°C
|
|
|
Metal magnets: recommended operating temperature is no higher than 500°C
|
